Rowald Refrigeration Systems Photo Catalog
Vandellos II Nuclear Power Plant
Vandellos, Spain
GK CHILLERS
Nuclear Safety Related
Capacity:  284 Ton
Coolant:  Water
Coolant Inlet Temperature:  53.6F
Coolant Outlet Temperature:  44.6F
Coolant Flow Rate:  758 GPM
Condenser:  22% Glycol Cooled
Glycol Inlet Temperature:  118.4F
Glycol Outlet Temperature:  127.4F
Glycol Flow Rate:  1.317 GPM

284 Ton, Glycol-Cooled Water Chiller

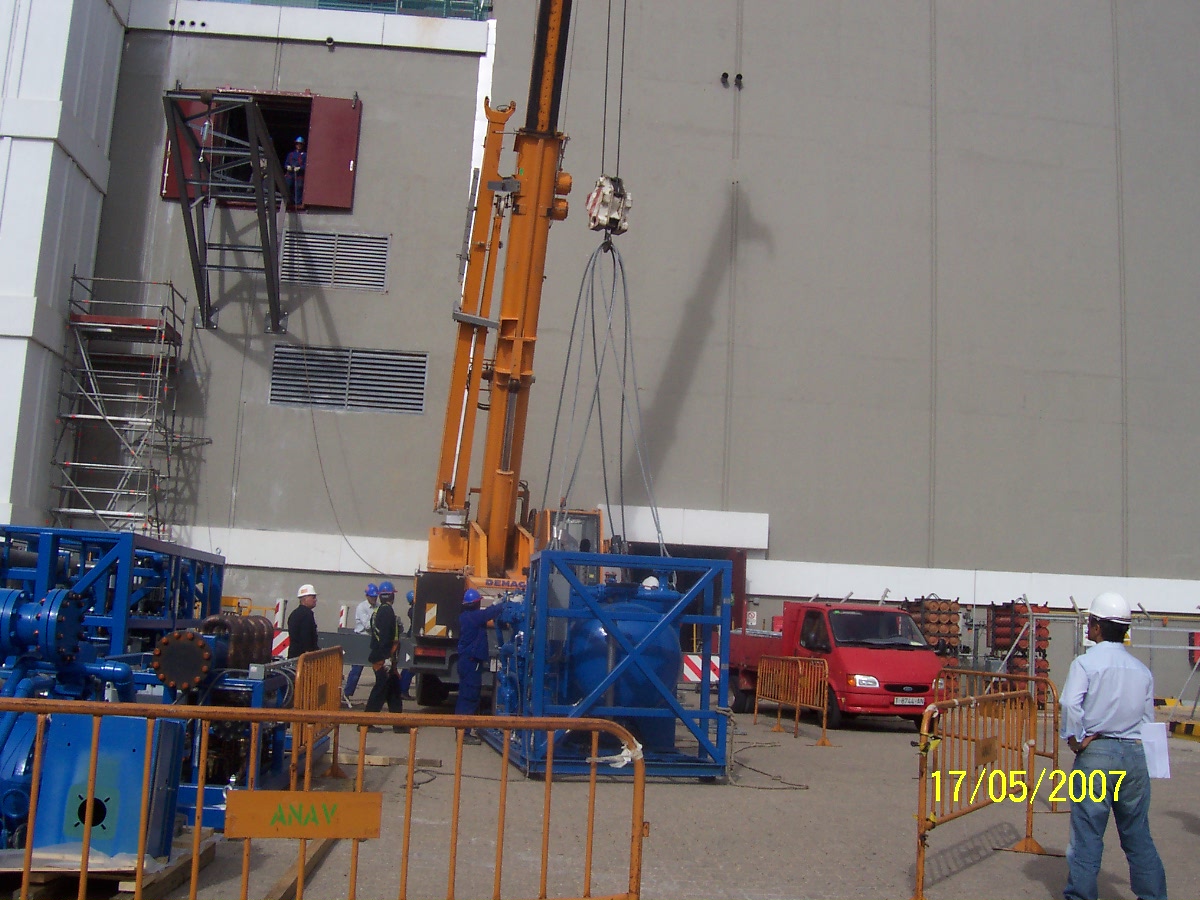

Staging The Compressor Section For Lift Into The Building

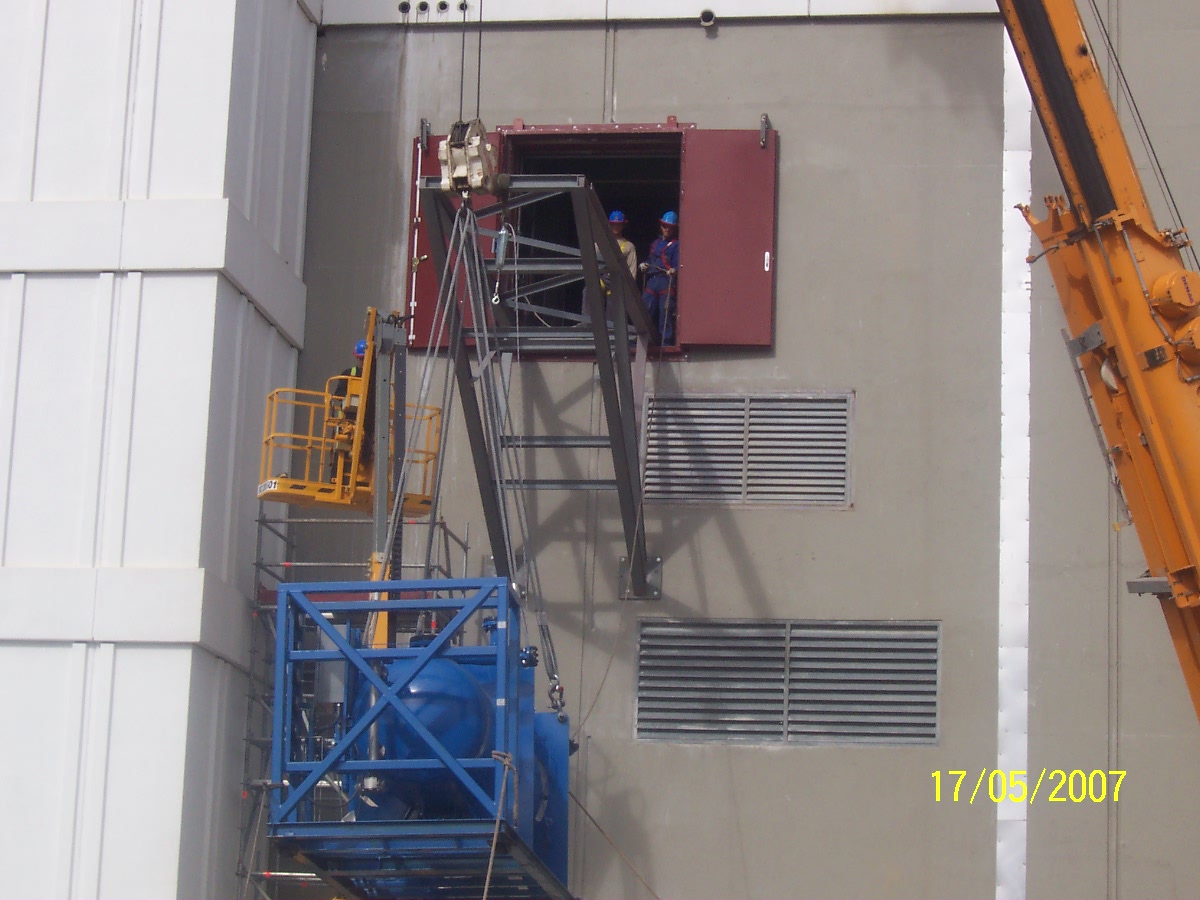

Lifting The Compressor Section

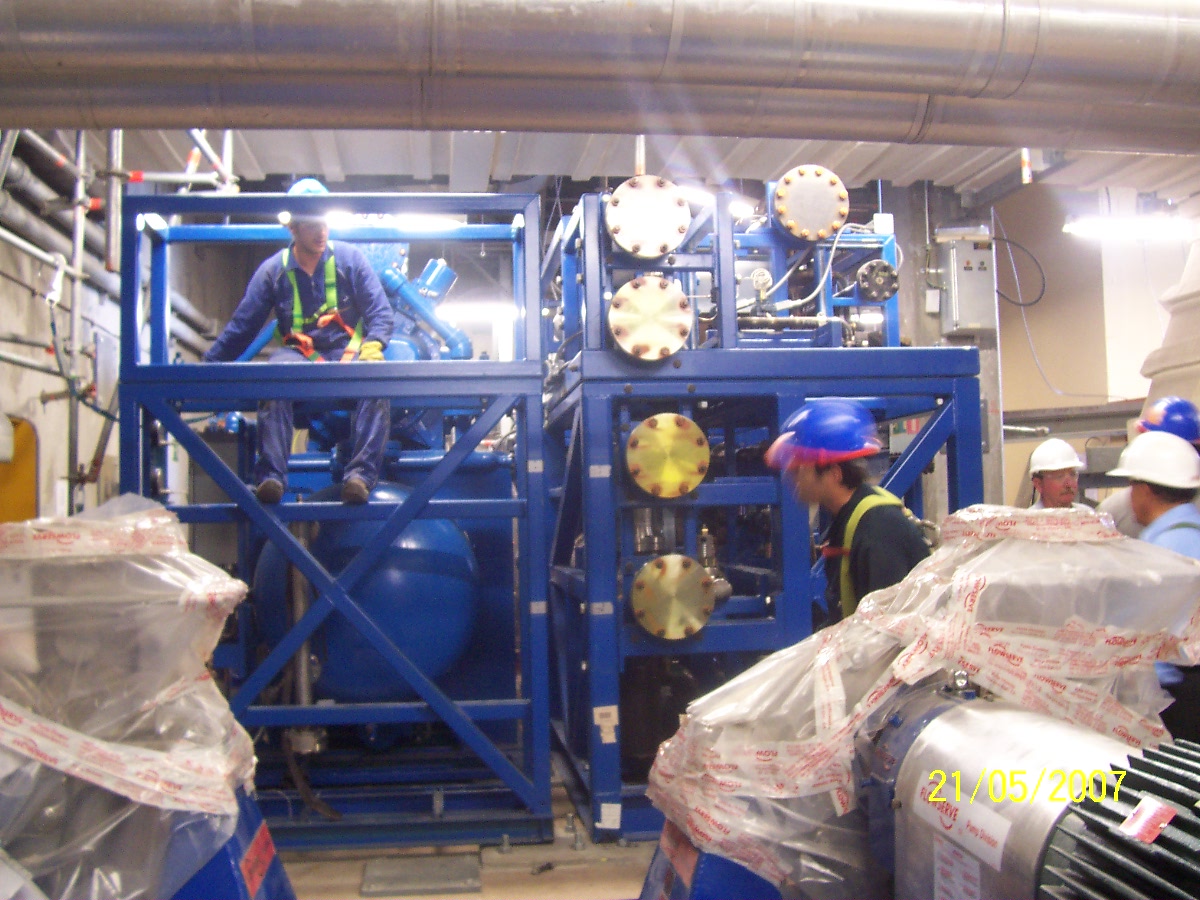

Installing The Chiller In The Plant
Compressor Section

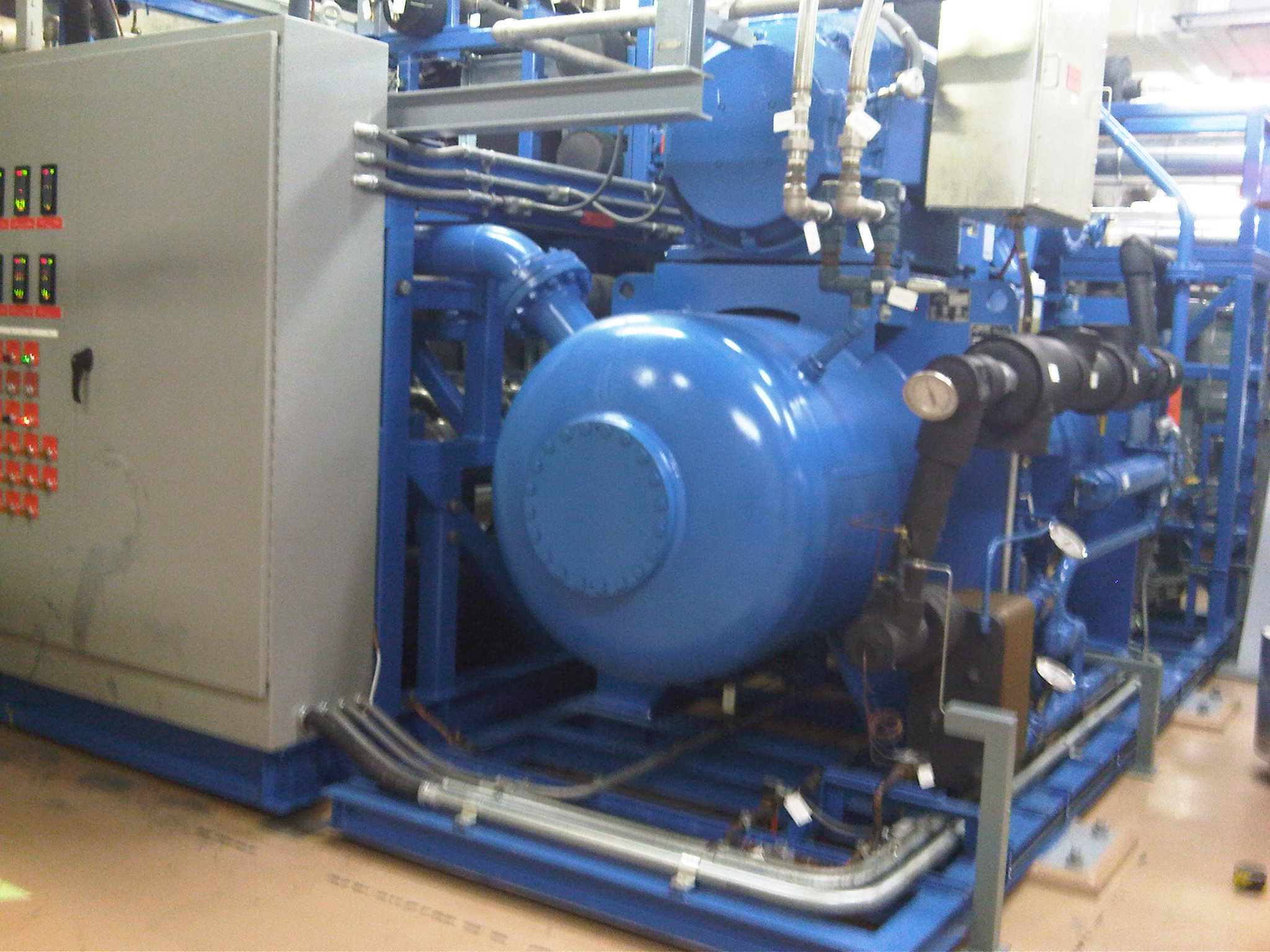

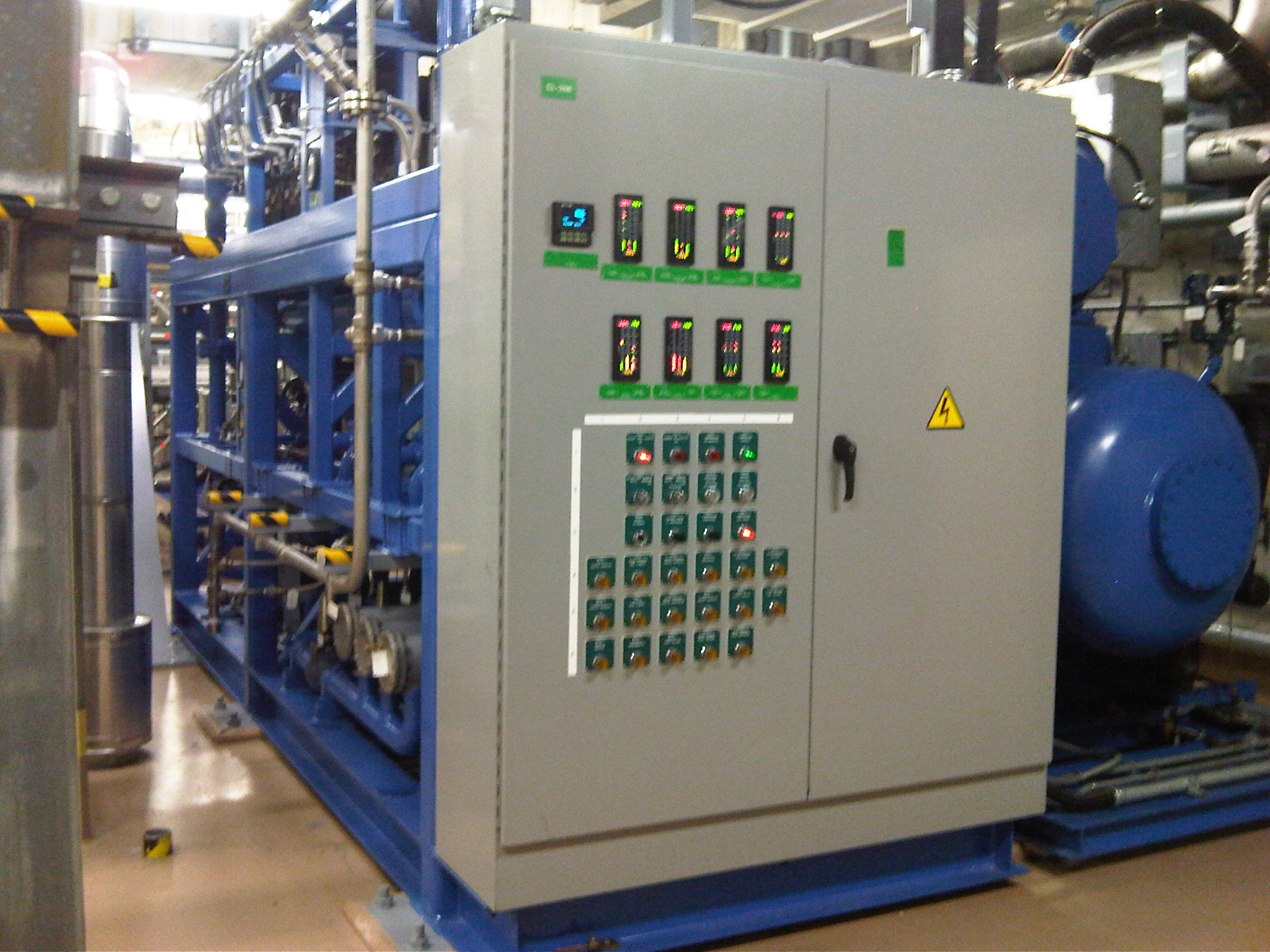

Condenser, Evaporator, and Electrical Controls

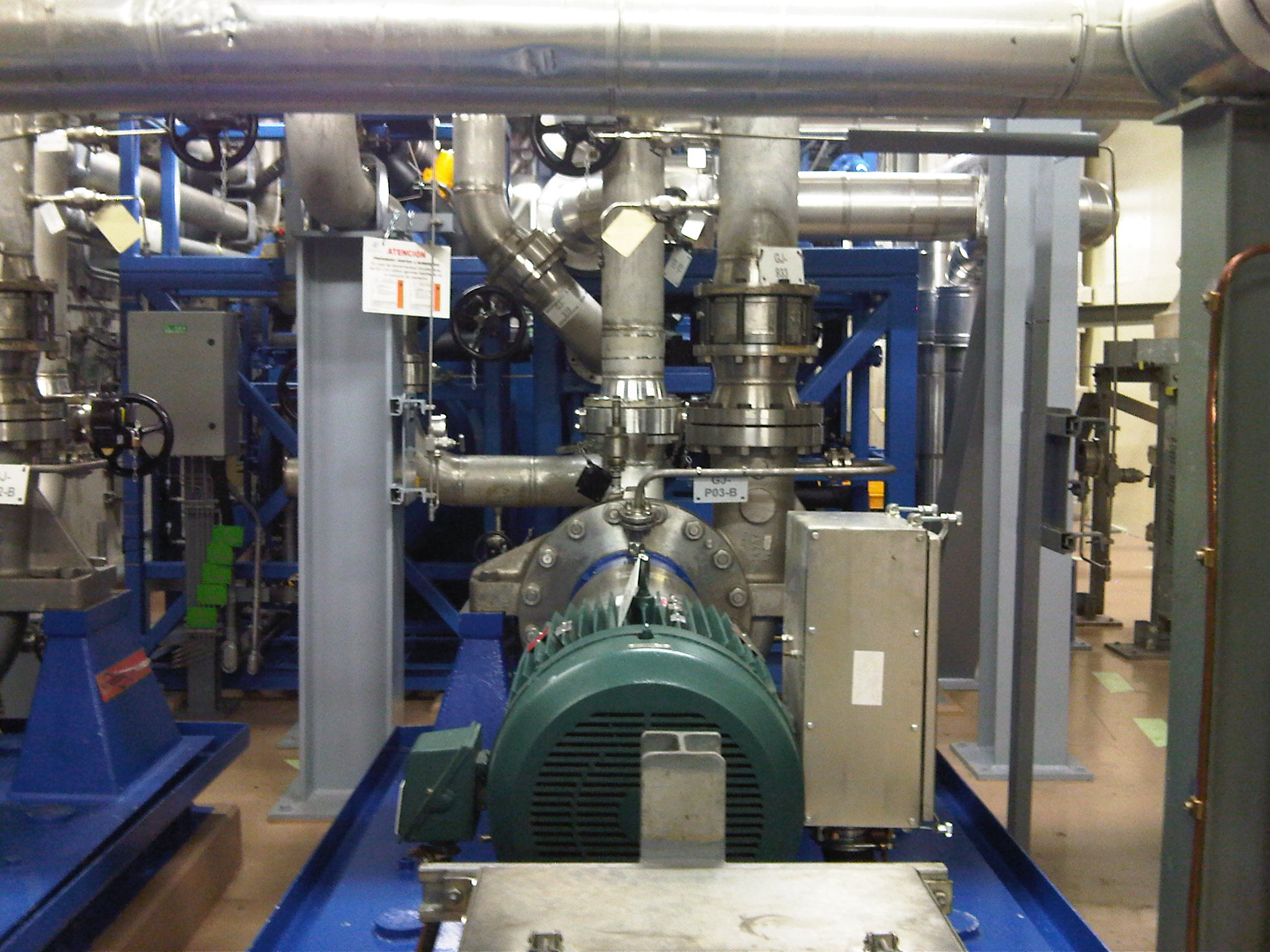

Glycol Pump
These pumps circulate the glycol from a dry cooler on the roof to the condenser
